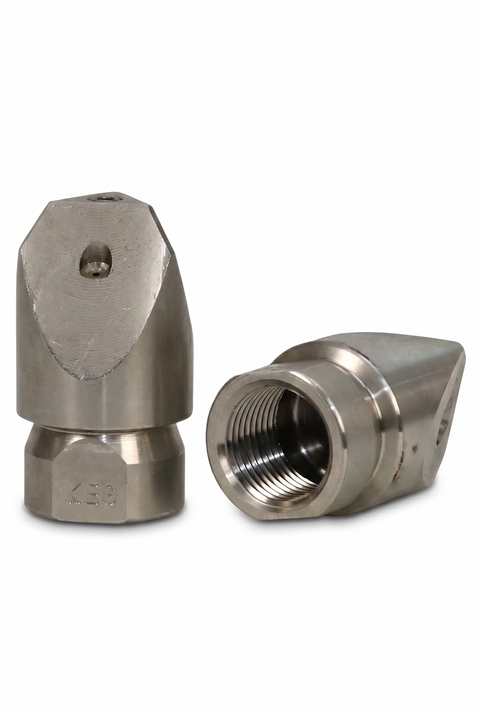

KEG Quattro Hydro Excavating Nozzle 1/2" — Hydro Excavation
Part # 0010 0054-HX · Brand: KEG Technologies
Specifications
Part Number
0010 0054-HX
Nozzle Family
Hydro-X Triple Edge Quattro Nozzle
Nozzle Size
1/2"
Jet construction
Four replaceable titanium ceramic forward inserts.
Jet Configuration
Four forward jets for hydro excavation.
Insert Type
Four replaceable titanium ceramic jet inserts.
Recommended Pipe Range
From 3"
Weight
0.3 lb
Dimensions
2 1/4" x 1"
Country of Origin
Manufactured in Germany · Assembled in the USA
Warranty
Replaceable steel inserts: 1-year manufacturer warranty; titanium ceramic inserts: 5-year manufacturer warranty, where supplied. Body and other component coverage varies by model. JPS performance returns are a separate policy.
Flow Range
6–25 GPM; confirm setup with JPS.
Product Description
Four forward jets for digging, not cleaning. The Hydro-X Quattro is purpose-built for excavation work — four forward jets at precise angles cut through dirt, root systems, and debris in tight spaces where shovels and backhoes can't go. Titanium ceramic inserts standard, 6–25 GPM flow range. Tier Two.
Best for: Hydro excavation, root system removal, digging around gas lines and underground utilities, pipe location in congested areas.
In the box: nozzle plus a cleaning tool for clearing debris out of the inserts and orifices between jobs.
