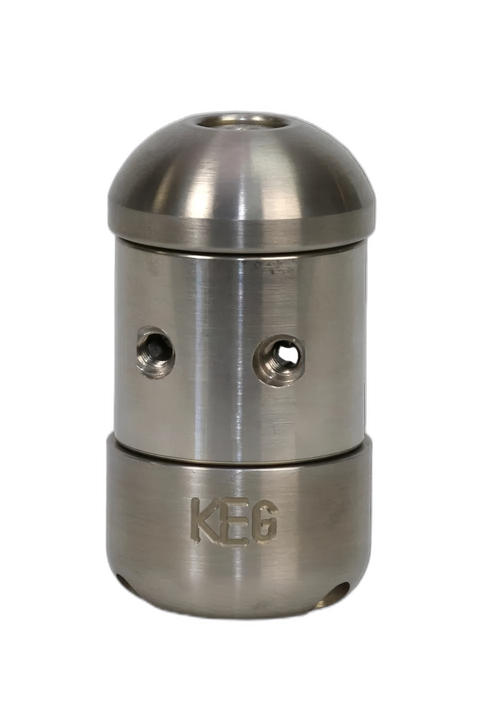

KEG Rotor Nozzle 90 Degree 1/2" — Grease, Scale & Small Roots

Part # 0010 0071-90-S  ·  Brand: KEG Technologies
KEG Rotor Nozzle 90 Degree 1/2" — Grease, Scale & Small Roots

Specifications

Part Number0010 0071-90-S
Nozzle FamilyRotor Nozzle
Nozzle Size1/2"
Jet insert threadM6 (not the hose connection)
Jet ConfigurationSeven inserts; 90° configuration.
Insert TypeReplaceable M6 jet inserts; see selected material/configuration.
Efficiency TierTier Two
Recommended Pipe Range3" to 10"
Weight1.3 lb
Dimensions3" x 1 3/4"
Country of OriginManufactured in Germany · Assembled in the USA
WarrantyReplaceable steel inserts: 1-year manufacturer warranty; titanium ceramic inserts: 5-year manufacturer warranty, where supplied. Body and other component coverage varies by model. JPS performance returns are a separate policy.

Available Configurations

0010 0071-90-SSteel
0010 0071-90-CCeramic

Product Description

Finishing nozzle: use after primary cleaning to remove remaining grease, scale and small root tendrils before camera inspection.Maximum wall impact for tough scale and grease. The 90° Rotor hits the pipe wall at a direct right angle — the most aggressive rotor configuration for stubborn mineral scale, hardened grease, and anything that won't come off with a standard rear-jet pass. Spins continuously for full 360° coverage in 3"–10" lines. Reversible rotating barrel, no lubrication required, replaceable M6 inserts. Best for: Heavy scale, hardened grease deposits, pre-camera inspection on problem lines. Sanitary. In the box: nozzle plus a cleaning tool for clearing debris out of the inserts and orifices between jobs. Operating and service instructions Need the operating or service instructions for your KEG Rotor? Ask JPS to confirm the document for your exact model and supplied config...
