Rotating Blockage Nozzle for Sewer Jetters, 43 mm
Part # JPS-DH-C43RS-HD-CONFIG · Reviews
Enter your running GPM and working PSI. JPS checks the complete nozzle, hose connection and operating limits with you before shipment. We’ll contact you if we need more details.
$1,399.00
Available to order — contact us for dispatch timing
Use the GPM you plan to run. Find it on your pump or machine label, or call JPS for help.
Your setup is saved with this item for the configuration check before shipment.
Shop PayApple PayGoogle PayAll major cards
Outfitting a fleet or city crew? Request an equipment quote · (864) 804-6637

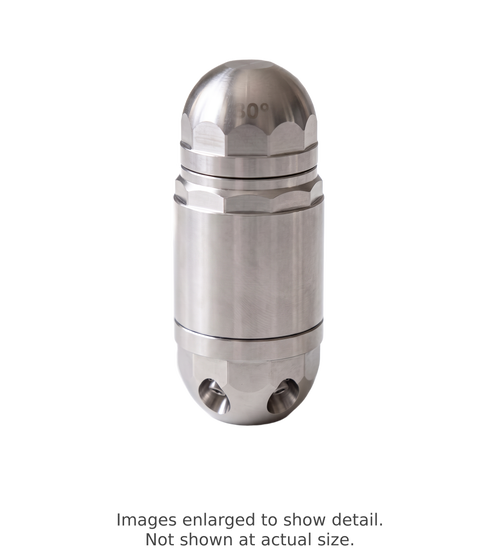

The Direct Hit C43RS HD heavy-duty penetrator is a rotating blockage nozzle for hard, repeated blockage and root work. A rotating front turbo jet bores through the obstruction while rear ceramic jets drive the heavy-duty 43 mm body forward. Every C43RS HD is jetted to your jetter's GPM, PSI and hose length and ships with a 1/4" or 3/8" hose connection.
The C43RS HD is the heavy-duty version of the C43 penetrator family. Its HD components and rear-jet configuration must be matched as one assembly.
One complete C43RS HD rear-jet penetrator with its fitted HD turbo assembly and three matched rear inserts.
The displayed price covers the complete configured nozzle or head described above. JPS confirms the final assembly, operating limits and machine fit before shipment. Hose adapters and optional accessories are separate unless explicitly listed as included.
| Brand | Direct Hit |
|---|---|
| Product type | Complete HD penetrator nozzle |
| Model | C43RS HD |
| Configuration | Heavy-duty penetrator |
| Primary job | Forward blockage penetration |
| Availability | Available from Jetter Pro Supply |
| GPM / PSI | Configuration-specific; confirm before shipment |
| Hose and inlet | Available configured for a 1/4-inch or 3/8-inch hose-end connection. Tell JPS which size you need; we confirm the fitting and complete setup before shipment. |
| Package contents | Complete configured nozzle/head as described above; optional extras excluded |
| HD rear-jet assembly supplier reference | 300-740-622 |
| Supplier-listed nozzle inlet | 3/8-inch NPT for reference 300-740-622. This is the supplier reference assembly; JPS can configure this offering for either a 1/4-inch or 3/8-inch hose-end connection. |
Enter the GPM you plan to run when ordering. JPS confirms the complete nozzle configuration, hose connection and operating limits with you before shipment. Machine model, hose and job details are optional at checkout; we will contact you if further information is needed to confirm the setup. A rotor size number is not the complete nozzle flow.

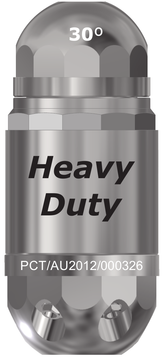

Images show the HD model family. Final supplied components and jetting are determined by the selected configuration; technical drawings are references.
HD-specific demonstration footage is not yet verified.
Watch on YouTube: Related C43RS demonstration — standard model shown, not a verified HD build
Videos remain hosted by their original creators. Demonstrated configurations and operating conditions may differ from the supplied JetterProSupply assembly.
This listing is for the HD penetrator family. HD construction must be matched to its own rotor and repair parts; adding a protective cover to a standard nozzle does not establish the same assembly. Extra carriages, covers and repair kits are separate unless listed in the final package.
Guides may show optional equipment or other configurations. Use the instructions for your supplied assembly and carriage.
Direct Hit has arrived and is available to order. Walk-in sales are available Monday–Friday, 8 a.m.–5 p.m., at the KEG Technologies building in Spartanburg. See directions and what to bring. Contact sales@jetterprosupply.com or (864) 804-6637 for order updates, configuration help and the applicable Direct Hit warranty terms. KEG insert warranty periods do not apply to Direct Hit products.
Direct Hit manufacturer assembly guide, 2020 edition. For C43RS HD, see PDF pages 5, 6, 32.
Download assembly guide (2020 PDF)
This booklet covers several assemblies and optional accessories. Match the standard or HD body and fitted components to your nozzle before assembly or service. Ask JPS to confirm the instructions for your supplied assembly.
See the manufacturer’s demonstrations of named Direct Hit penetrating and cutting assemblies. Confirm the exact assembly, accessories and machine fit with JPS. Direct Hit is available now.
Watch Direct Hit manufacturer demonstrations
The practical value is a tool chosen for the task, a matching setup and support after the sale. Job time and water use depend on the machine, line and obstruction.
Compare the job, fit, maintenance and applicable coverage. A brand name or tier alone does not make every model suitable for the same work.
Direct Hit is available from JPS with product support and configuration review before shipment. Contact JetterProSupply
| Part number | JPS-DH-C43RS-HD-CONFIG |
|---|---|
| Brand | Direct Hit |
| Brand | Direct Hit |
| Product type | Complete HD penetrator nozzle |
| Model | C43RS HD |
| Configuration | Heavy-duty penetrator |
| Primary job | Forward blockage penetration |
| Availability | Available from Jetter Pro Supply; confirm the supplied configuration before shipment. |
| GPM / PSI | Configuration-specific; confirm before shipment |
| Hose and inlet | Available configured for a 1/4-inch or 3/8-inch hose-end connection. Tell JPS which size you need; we confirm the fitting and complete setup before shipment. |
| Package contents | One complete C43RS HD rear-jet penetrator with its fitted HD turbo assembly and three matched rear inserts. |
| HD rear-jet assembly supplier reference | 300-740-622 |
| Supplier-listed nozzle inlet | 3/8-inch NPT for reference 300-740-622. This is the supplier reference assembly; JPS can configure this offering for either a 1/4-inch or 3/8-inch hose-end connection. |
JPS confirms insert sizes for the supplied nozzle using operating GPM, pump PSI, hose inside diameter and hose length. Do not choose replacement inserts from hose-connection size alone.
JPS confirms the complete configuration and machine fit before shipment. Enter your GPM, PSI and hose details with the order, or call (864) 804-6637.
Check the data plate on the pump or the jetter manual. Or call (864) 804-6637 with the machine make and model and we'll look it up.
For eligible nozzle and kit returns, return the complete item within 30 days of delivery for a refund of its purchase price if it does not do the job under normal, intended use. Normal testing wear, including on supplied inserts, is accepted. Include all supplied components and the case if supplied. Eligible returns receive a prepaid label. Custom or special-order items may not be returnable; see full eligibility and instructions. 30-day performance return terms
Dispatch timing depends on this item and its configuration. Contact JPS to confirm timing for a scheduled job.
Dispatch and delivery are separate. Free ground shipping remains available at $199+. Free 2-Day Air on eligible parcel orders over $599 to the contiguous 48 states; estimated two-business-day transit starts after dispatch. Preparation, configuration and exclusions apply. Shipping details
Net 30 applies only to eligible 3/4-inch-and-larger equipment on approved B2B accounts. Items 1/2 inch and under are credit-card purchases. Request an equipment quote or call (864) 804-6637.
Judge the tool by the work it covers, the parts you can service and the support behind the setup.
Direct Hit: Direct Hit rotor assemblies, ceramic jets and adapters are separate service items. Match the exact model and fitted configuration before ordering; a spare rotor is not included unless the listing says so.
Direct Hit parts and assemblies →Direct Hit manufacturer coverage must be confirmed for the exact product. KEG’s component warranty does not apply to Direct Hit.
Read model and component coverage →JPS’s 30-day performance guarantee accepts normal testing wear on a complete eligible nozzle or kit, including supplied inserts. Return all supplied components. Eligibility, exclusions and prepaid-label instructions are in the return policy.
Read the performance guarantee →A matching service kit can restore a serviceable assembly when its replaceable components are the cause of the problem. JPS can help identify the parts before you order.
Look for the exact nozzle and configuration, machine flow and pressure, hose, pipe condition and the work completed. Compare before-and-after inspection of the same section. One successful job does not establish a universal speed, water-use or service-life advantage.
Compare purchase price, replacement parts and service costs over the same number of jobs. Record time and water used on comparable work. A useful cost per job is total tool and service cost divided by jobs completed; any time savings should come from your own measured results.
Compare the penetrator, cutter and complete set. Check each model’s setup before ordering.
Need a replacement rotor, insert or adapter? Ask us to confirm the exact part for your nozzle.
