KEG Triple Edge Quattro 1-Inch: Opening a Path Through a Blockage

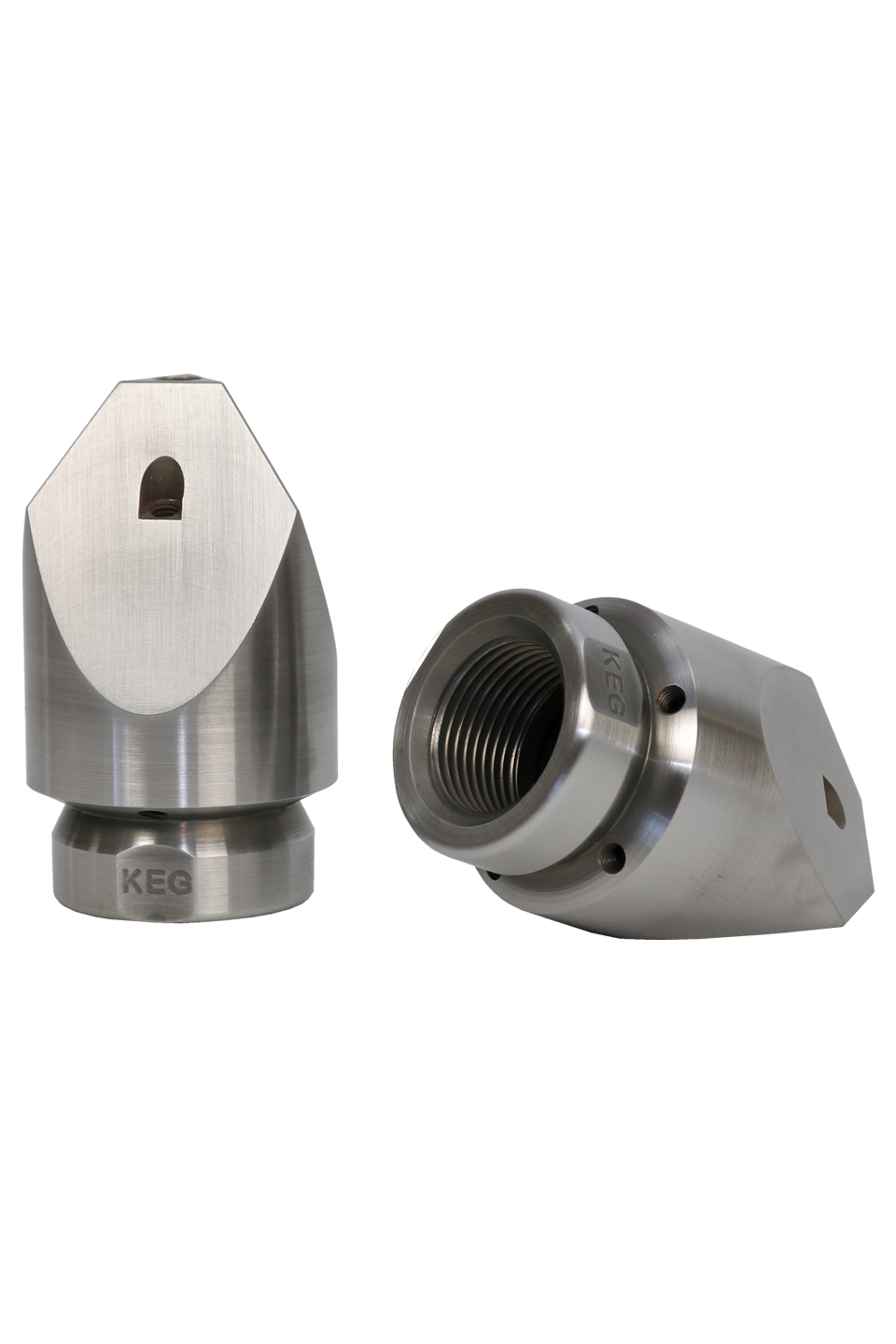

Manufacturer model reference image. Confirm the actual demo/used unit and included components when requesting a quote.

A blocked line and a dirty line do not always need the same first tool. If water cannot pass the obstruction, opening a route through it may come before a broader cleaning pass. The standard 1-inch KEG Triple Edge Quattro, part 0010 0058, is designed for penetration work. Its sharp-edged body, forward jets and rear propulsion jets explain that role more clearly than a generic “cleaning nozzle” label.

Four forward jets, five rear jets

On the 1-inch standard Quattro, four forward jets work toward the obstruction while five rear jets provide propulsion. The hardened stainless body has sharp edges that contribute to its penetration design. The model uses M8 inserts, with steel or titanium ceramic configurations described in the catalog.

This is not a powered spinning drill or a chain cutter. Its forward water action and body shape are the relevant mechanisms. Understanding that distinction helps a buyer ask whether the tool suits the blockage instead of assuming any nozzle called a Quattro has the same design or purpose.

Which Quattro is this?

The exact part number matters. This article covers 0010 0058, the standard Triple Edge Quattro. It does not describe the Drill Point Quattro, part 0010 0059, or the Hydro-X version. Similar names and a shared connection size do not make those products interchangeable.

When reviewing a demo or used listing, ask for identification and current photos of the actual unit. Confirm the body style and installed inserts rather than using another model's photograph or specifications to fill in missing details.

Use the blockage description to guide selection

KEG lists total blockages involving sand, mud, roots or trash among this model's sanitary-line applications. The catalog also discusses deformed pipes. That does not mean the nozzle repairs a structural deformation or makes a damaged pipe safe to work in.

Tell JPS what is known about the restriction: the material, whether flow is completely stopped, the pipe diameter and material, and any inspection findings. A suspected damaged section deserves specific attention. The presence of a listed application is not a guarantee that every obstruction of that type can be cleared with this tool.

An opening is not the same as a fully cleaned line

Penetration and cleaning completion are separate objectives. Restoring a path for water can be useful progress, but it does not by itself show that remaining deposits, loose material or the rest of the pipe have been addressed. Decide what result the job requires and how it will be checked.

A subsequent cleaning tool may have a different jet pattern and purpose. For comparison, the standard 1-inch KEG Cleaning Nozzle uses a rear pattern aimed at everyday general cleaning and wall force. It is a related option to discuss, not a required companion or a guarantee that a two-tool sequence fits every job.

Fit means more than a matching thread size

The standard 1-inch Quattro is cataloged for pipe from 4 inches. Here, 1 inch refers to the nozzle connection; it is not the pipe diameter. The complete assembly still needs suitable clearance through the access point, fittings and the line being worked.

Provide machine GPM and working PSI, hose inside diameter and length, hose-end connection, pipe diameter and the cleaning task. JPS can use those details to review the installed inserts and working setup. Confirm a used nozzle's configuration against your machine before putting it into service.

Make the quote specific to the unit

Ask what condition the body, edges, threads and inserts are in, which components are supplied, and whether the quoted configuration matches your machine. Also confirm current availability, price and dispatch timing. A representative catalog image explains the model; it does not document wear or included parts on a particular used nozzle.

Request details for the demo/used standard 1-inch KEG Quattro. Include part 0010 0058 and your blockage description so the discussion starts with the correct model and the work you need it to do.
